AmpliFi HD Mesh Router
The AmpliFi™ HD (High Density) Mesh Router can be used as a stand-alone router or with other AmpliFi™ Mesh Routers for multi-hop, self-healing wireless coverage and enhanced range.
For a typical home, the Router alone delivers maximum throughput to meet your streaming and gaming demands with lag-free performance.

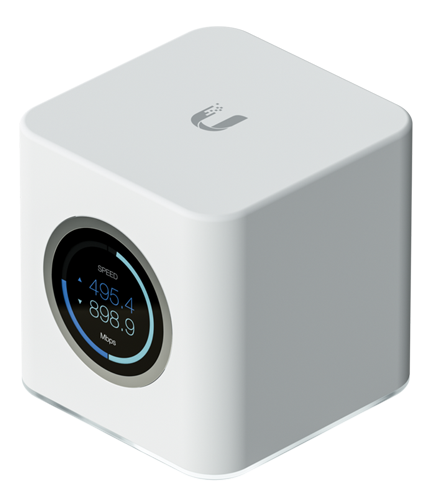

The Router features an innovative and simple design with an intuitive touchscreen display.
A mobile app is available for iOS and Android platforms for instant setup and easy management.
Home Wi-Fi Mesh Technology

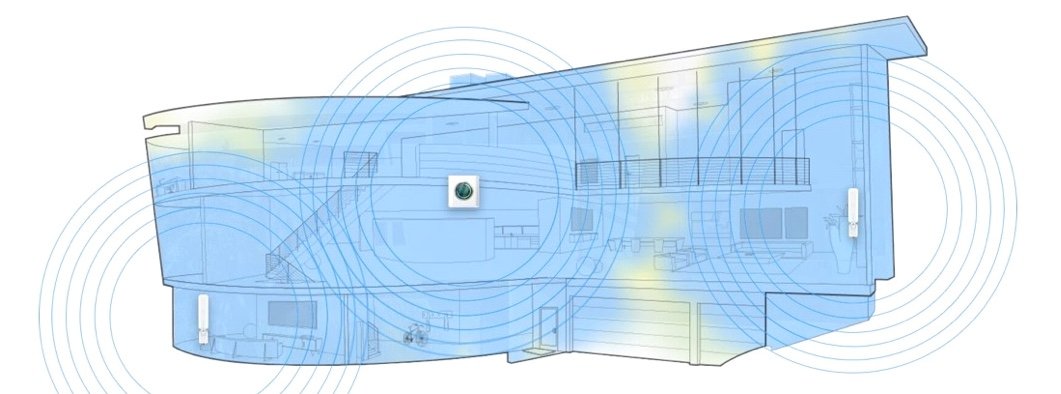

AmpliFi’s multi-radio Wi-Fi system eliminates dead spots utilizing mesh point technology to provide premium, ubiquitous Wi-Fi coverage throughout your home.
Product Information
| AmpliFi Specifications | Max TX Power | 26 dBm |
| Radios | 6 | |
| MIMO Chains | 6 | |
| Speed | 1,750 Mbps | |
| Common Specifications | Networking Interface | Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
| Maximum Power Consumption | 11W | |
| Buttons | Reset | |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity | |
| Display | 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color | |
| Wi-Fi Standards | 802.11b/g/a/n/ac | |
| Power Save | Supported | |
| Wireless Security | WPA2-PSK AES/TKIP | |
| Operating Temperature | 14 to 131° F (-10 to 55° C) | |
| Operating Humidity | 95% Noncondensing | |
| Certifications | FCC / CE / IC | |
| Supported Data Rates | 802.11ac | 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
