SEE-I772
- Features
- Specifications
- Accessories
- Download
- > 5 mechanical button
- > 1 channel 10/100 mbps self-adaptive Elthernet
- > To communicate with other residents in the same community
- > Info publish, leave messages, emergency calling
- > Support DND setting and mulitple outdoor station connecation
- > Support outdoor station and IPC monitor
- > Support POE power supply
- > Support SD card storage, video record and picture snapshot
- > Handset Optional
7-inch Color Indoor Monitor SEE-I772
| Model | SES - i772 | |
| System | Main Processor | Built-in microcontroller |
| Operation System | Embedded LINUX operating system | |
| Video | compression | H.264 |
| Resolution | 800*480 | |
| Audio | Audio Input | All-direction microphone |
| Audio Output | Embedded loudspeaker | |
| Bidirectional Talk | Support bidirectional talk | |
| Display | Size | Color 7-inch TFT LCD |
| Alarm | Alarm input | Mechanical keys(emergency, protection, video talk, monitoring,unlock ), Touch screen technology |
| Network | Ethernet | 10 M / 100 Mbps adaptive |
| network protocol | TCP/IP | |
| General | Power | DC 10~15V or supply directly by Special switching power |
| Power Consumption | Standby 1.5W, work 7W | |
| work environment | Temperature: -10oC~+60oC | |
| Humidity: 10~90%RH | ||

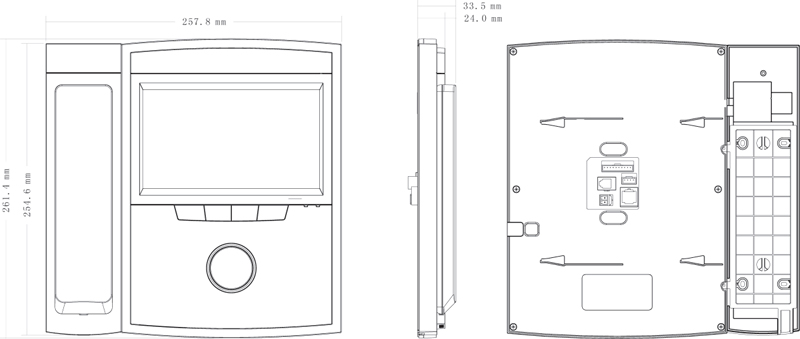

| Dimensions | 261.4mm*257.8mm*33.5mm (L*W*T); | |
| Weight | 1.3Kg : | |
